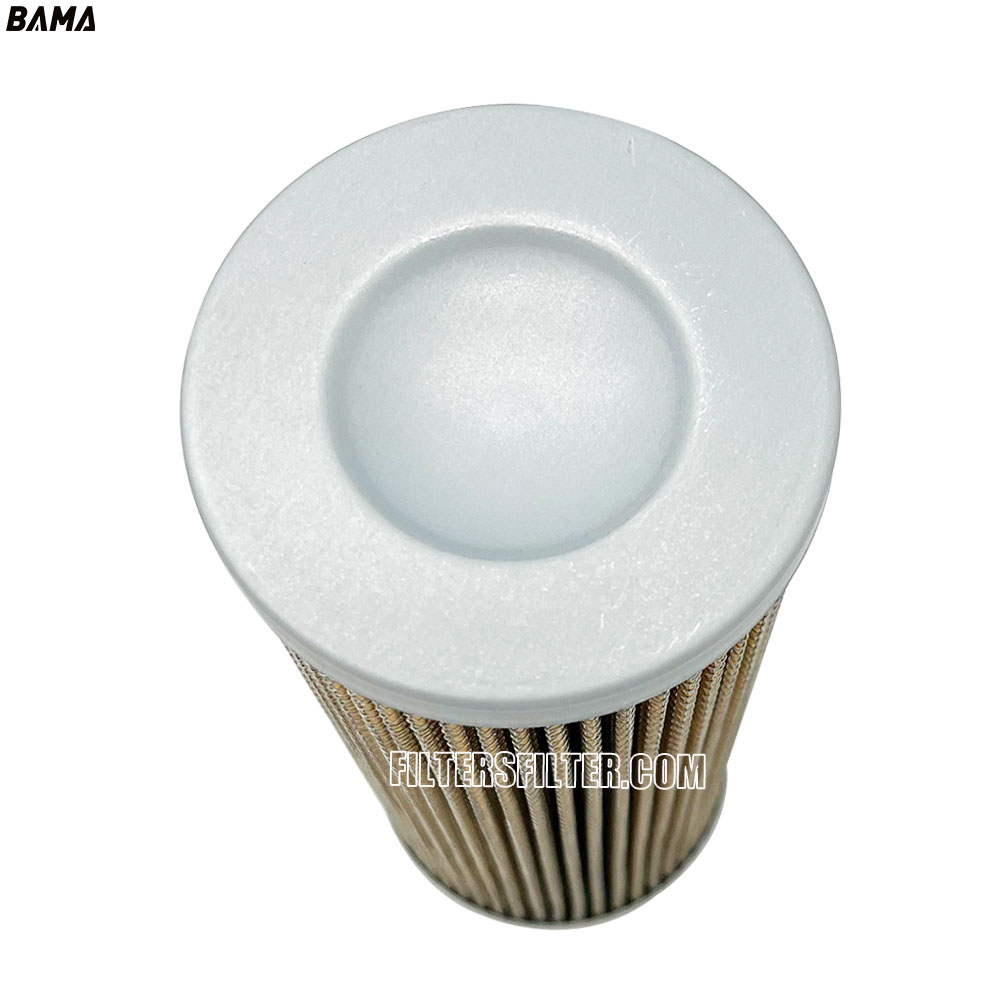

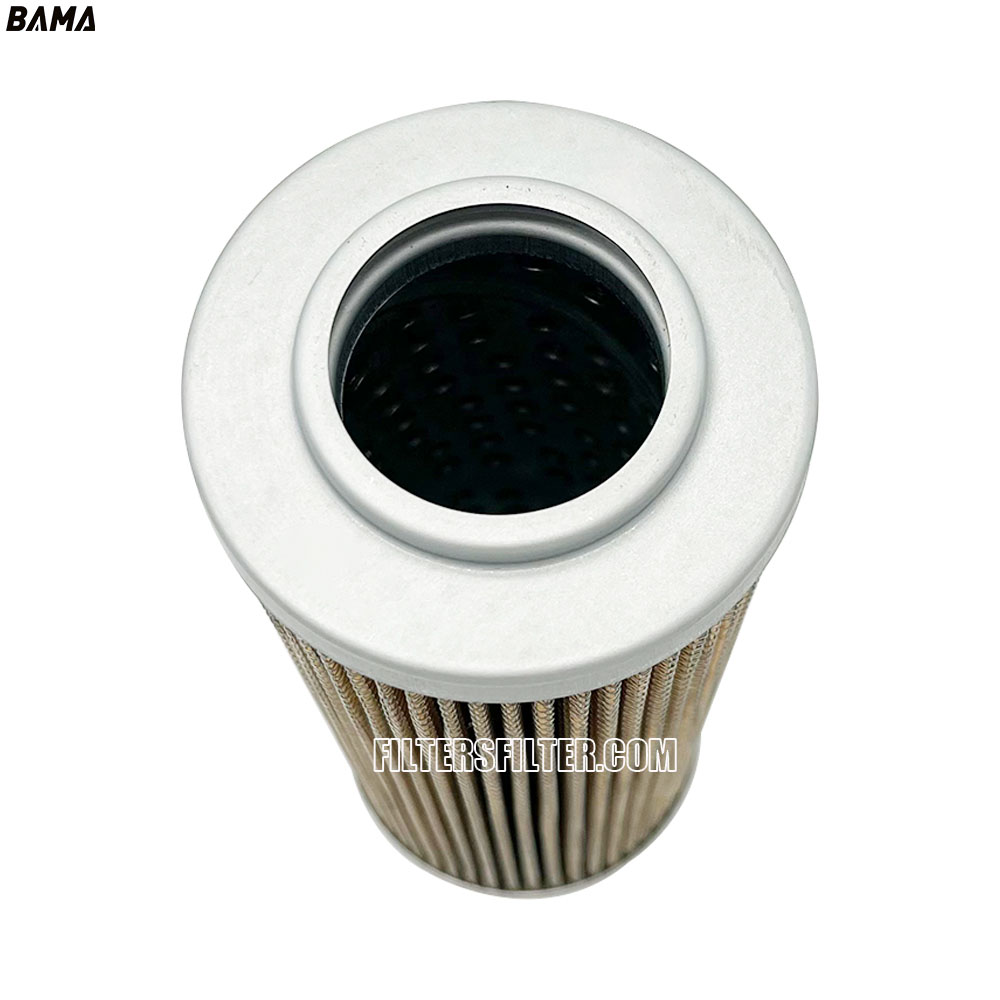

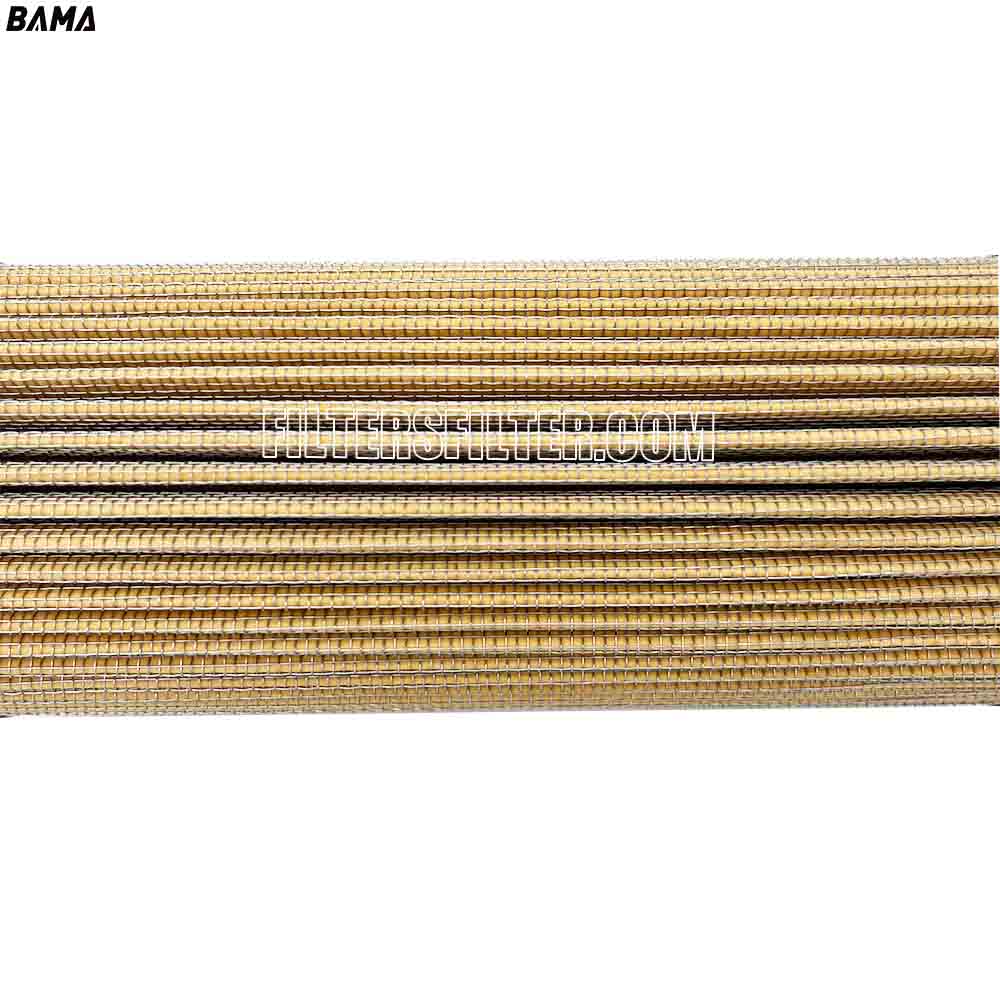

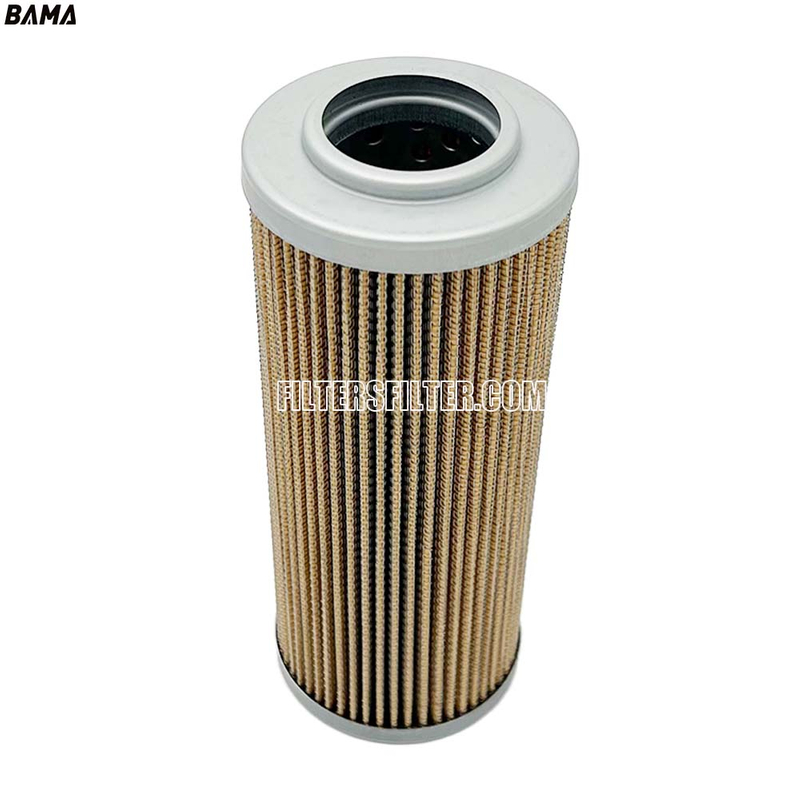

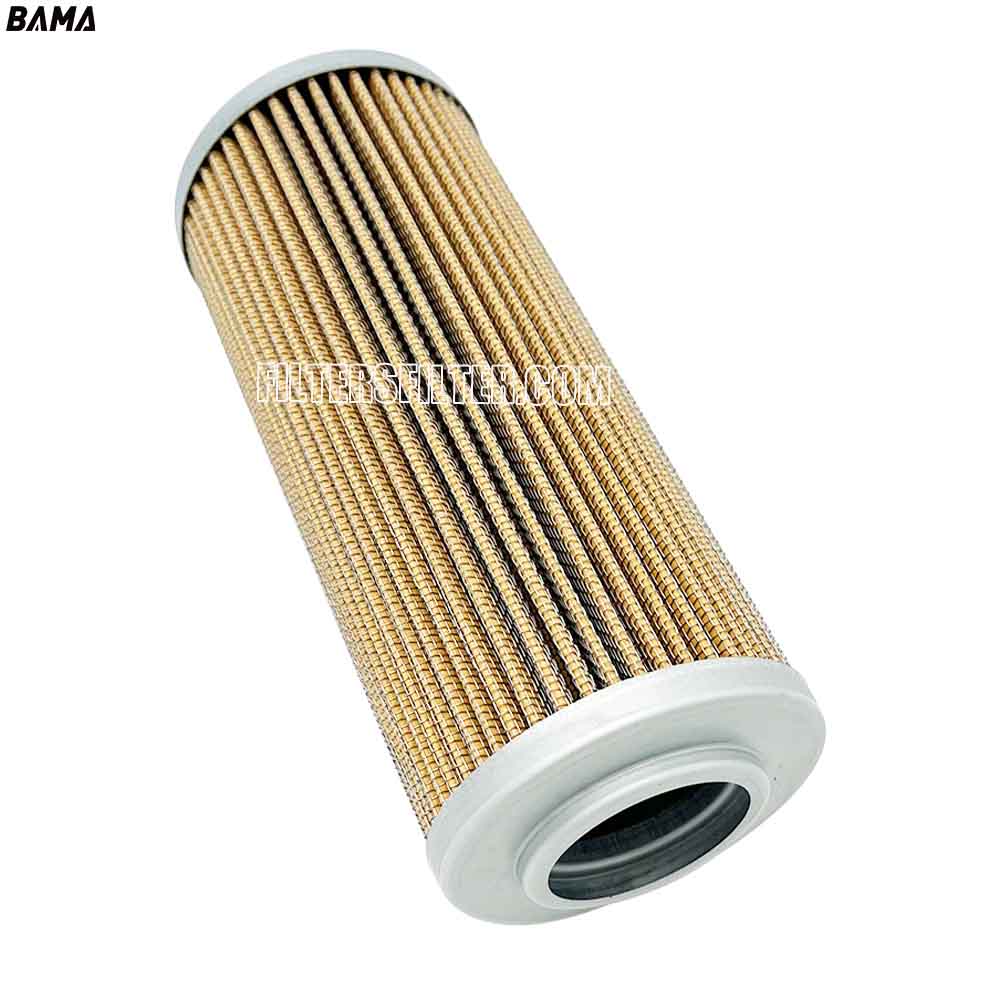

Replacement TAISEI KOGYO Construction Machinery Hydraulic Filter Element PGUM0610UW

Sales Mode: Wholesale
MOQ: 10pcs
Part numbers marked replacement are not manufactured or affiliated with TAISEI KOGYO. Part numbers and names are used for cross reference only.
Availability:
Quantity:
  • PGUM0610UW

  • OEM TAISEI KOGYO

PGUM0610UW Product Attributes:

Model No :

PGUM0610UW

Brand :

BAMA

Packaging :

Carton Box


Productivity :

3000pcs/month

Transportation :

Ocean,Land,Air


Place of Origin :

Hebei, China

Certificate :

ISO9001:2015


HS Code :

8421999090

Selling Units:

Piece/Pieces


Filtration Efficiency :

99%


45

63


TECHNICAL INFO:



图纸

Weight[kg]

1

Area of application hydraulics
Seals-Material NBR
Flow direction Outside to Inside
max. will. Differential pressure [bar] 10
Mesh size [μm] 15
Zul. Continuous operating temperature -30°C to +100°C
Filter medium wire mesh

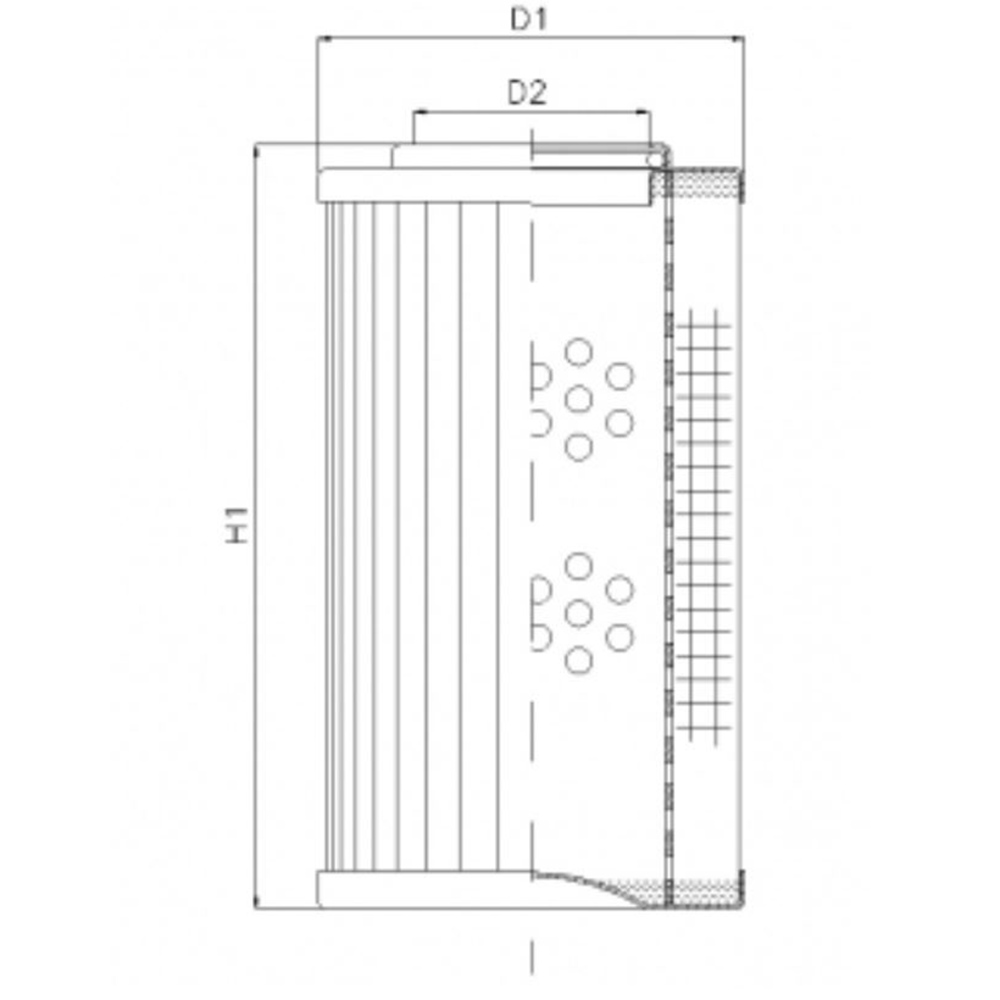

D1
62
D2 34
H1 154


Please check below OEM Cross Reference (if any).




OEM Cross Reference:

HY22591 SF-FILTER
PGUL06A10UW TAISEI KOGYO
PGUM0610UW TAISEI KOGYO
SH60338 HIFI
WT1733 FILTREC

Application

Mainly used for steel mill , power plant ,mine/resource depot , paper mill, and paper making enterprise power hydraulic station system filtration, widely used in petroleum, metallurgy, chemical industry, railway, oil field, oil exploitation,pharmaceutical factory aviation, electronics, power, pharmaceutical, environmental protection, atomic energy, nuclear industry, natural gas, refractory materials, fire fighting equipment, etc. field. In hydraulic systems steam turbine systems, natural gas systems and lubrication station systems, etc



Glass Fiber Oil Filter Has The Features As Follow

● Resistance to high temperature, high pressure.

● High strength, high filter rating, good dirt holding capacity, repeated washing

● Filter layers, ripple neat

● Easy to install

● Strong inner skeleton

● Segregated Depth Filtration

● High Dirt Holding Capacity

● Reduce bearing wear

● extend the use of oil life.
