Replacement HYDAC Hydraulic Return line filter 01263028

Product Attributes：

TECHNICAL INFO：

	Weight[kg]	2.16
	Gaskets - Material	NBR
	max. permissible differential pressure [bar]	20
	Area of application	hydraulics
	Filter medium	glass fiber
	Filter fineness [µm(c)]	B5=200 / B7=1000
	Bypass valve opening pressure [bar]	3
	Permitted Continuous use temperature	-30°C to +100°C

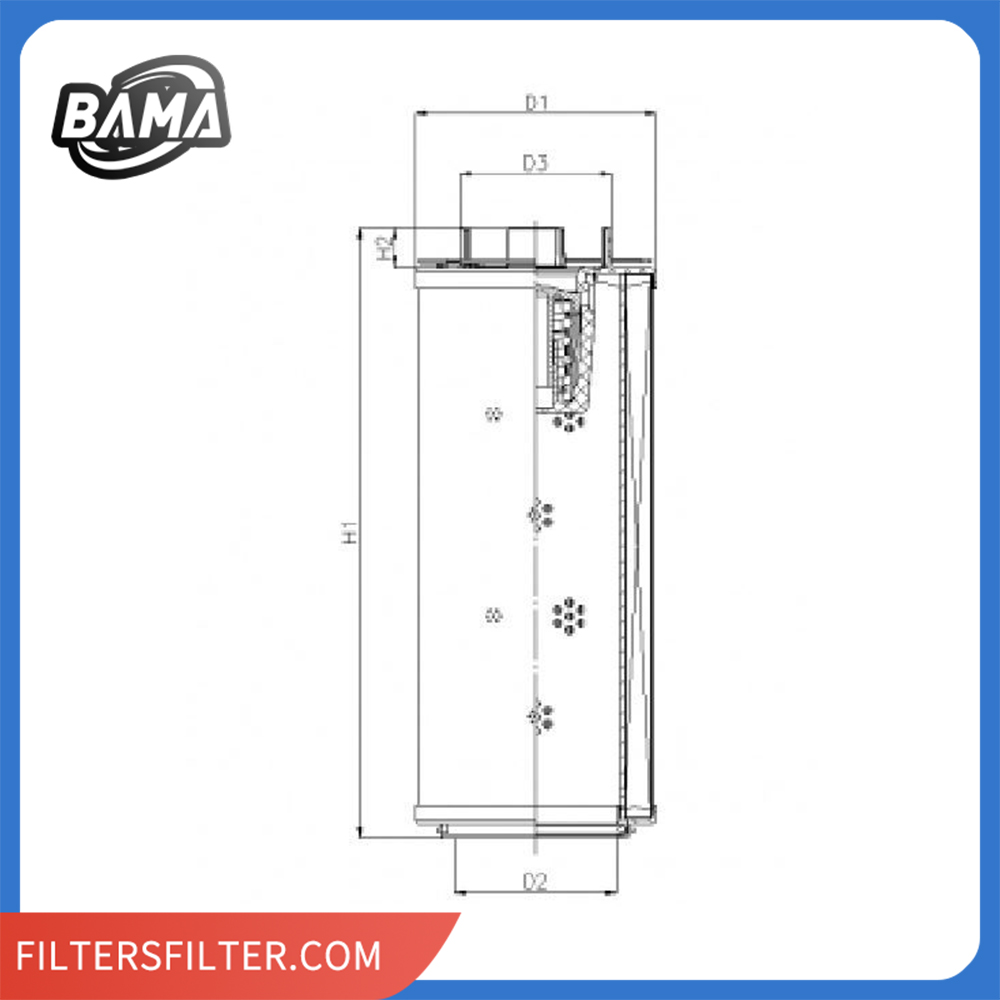

	D1	114
	D3	65.5
	H1	412
	H2	18
	D2	68.4

Please check below OEM Cross Reference (if any).

OEM Cross Reference:

Application

Mainly used for steel mill , power plant ,mine/resource depot , paper mill, and paper making enterprise power hydraulic station system filtration, widely used in petroleum, metallurgy, chemical industry, railway, oil field, oil exploitation,pharmaceutical factory aviation, electronics, power, pharmaceutical, environmental protection, atomic energy, nuclear industry, natural gas, refractory materials, fire fighting equipment, etc. field. In hydraulic systems steam turbine systems, natural gas systems and lubrication station systems, etc

Glass Fiber Oil Filter Has The Features As Follow

● Resistance to high temperature, high pressure.

● High strength, high filter rating, good dirt holding capacity, repeated washing

● Filter layers, ripple neat

● Easy to install

● Strong inner skeleton

● Segregated Depth Filtration

● High Dirt Holding Capacity

● Reduce bearing wear

● extend the use of oil life.
