Replacement HYDAC Hydraulic Return Oil Filter Element 1274082

1274082 Product Attributes：

TECHNICAL INFO：

	Weight [kg]	1
	Area of application	hydraulics
	Flow direction	Outside to Inside
	max. will. Differential pressure [bar]	20
	Filter medium	glass fibre
	Filter fineness [μm(c)]	b10=200, b12=1000
	Bypass valve Opening pressure [bar]	3
	Seals-Material	NBR
	Zul. Continuous operating temperature	-30°C to +100°C

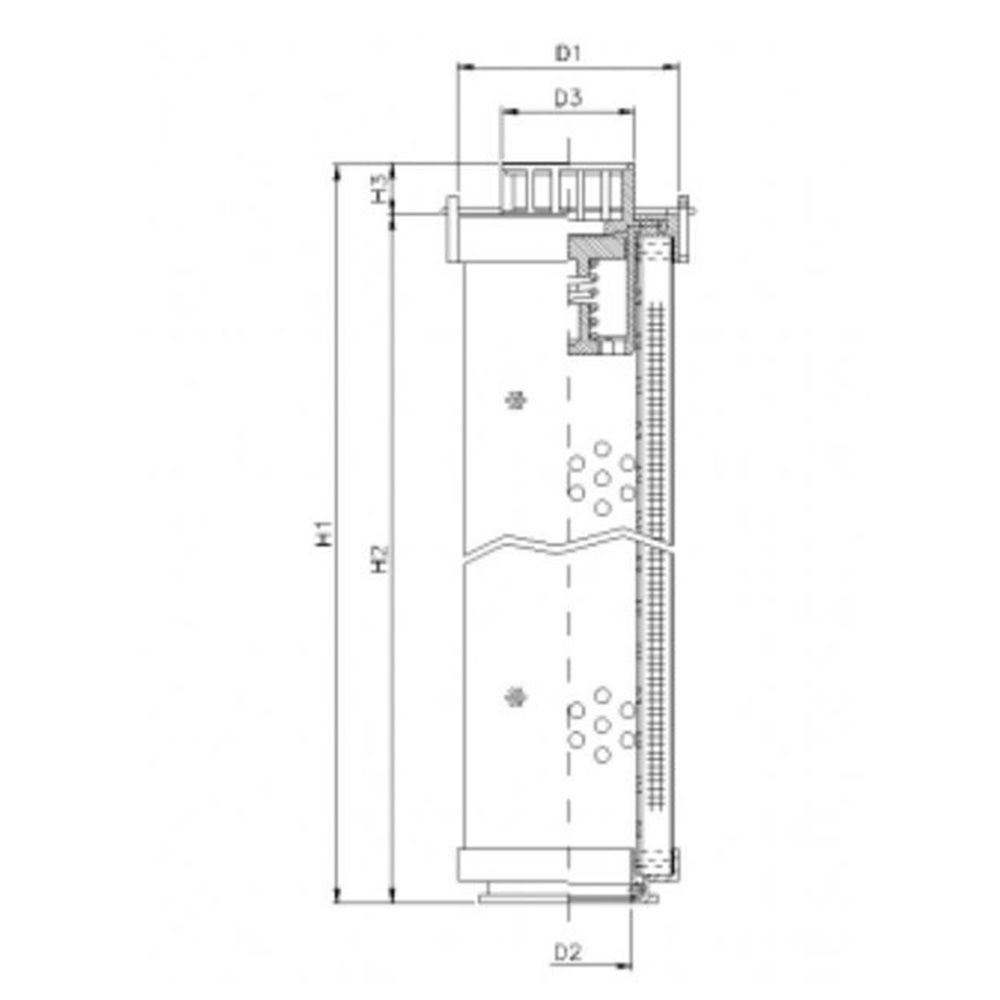

	D1	60
	D2	34,5
	D3	36
	H1	296
	H2	282
	H3	14

Please check below OEM Cross Reference (if any).

OEM Cross Reference:

Application

Mainly used for steel mill , power plant ,mine/resource depot , paper mill, and paper making enterprise power hydraulic station system filtration, widely used in petroleum, metallurgy, chemical industry, railway, oil field, oil exploitation,pharmaceutical factory aviation, electronics, power, pharmaceutical, environmental protection, atomic energy, nuclear industry, natural gas, refractory materials, fire fighting equipment, etc. field. In hydraulic systems steam turbine systems, natural gas systems and lubrication station systems, etc

Glass Fiber Oil Filter Has The Features As Follow

● Resistance to high temperature, high pressure.

● High strength, high filter rating, good dirt holding capacity, repeated washing

● Filter layers, ripple neat

● Easy to install

● Strong inner skeleton

● Segregated Depth Filtration

● High Dirt Holding Capacity

● Reduce bearing wear

● extend the use of oil life.
