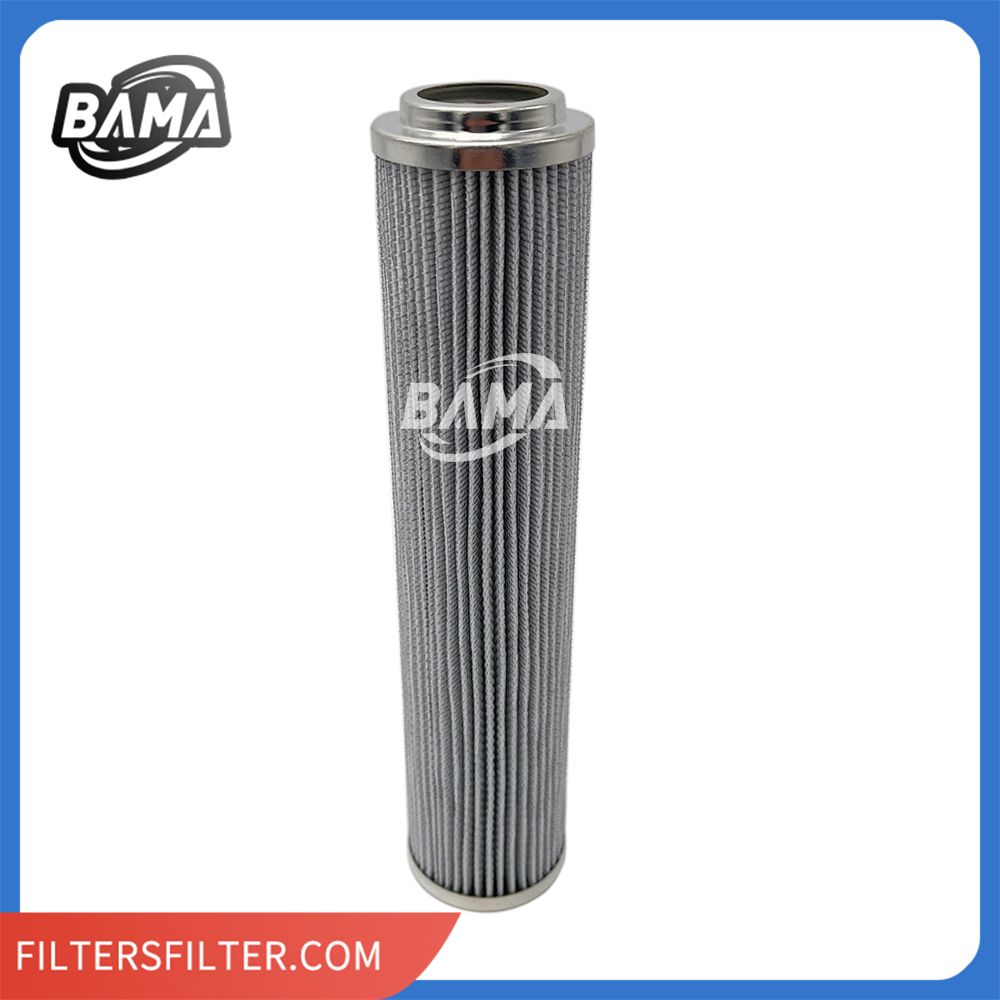

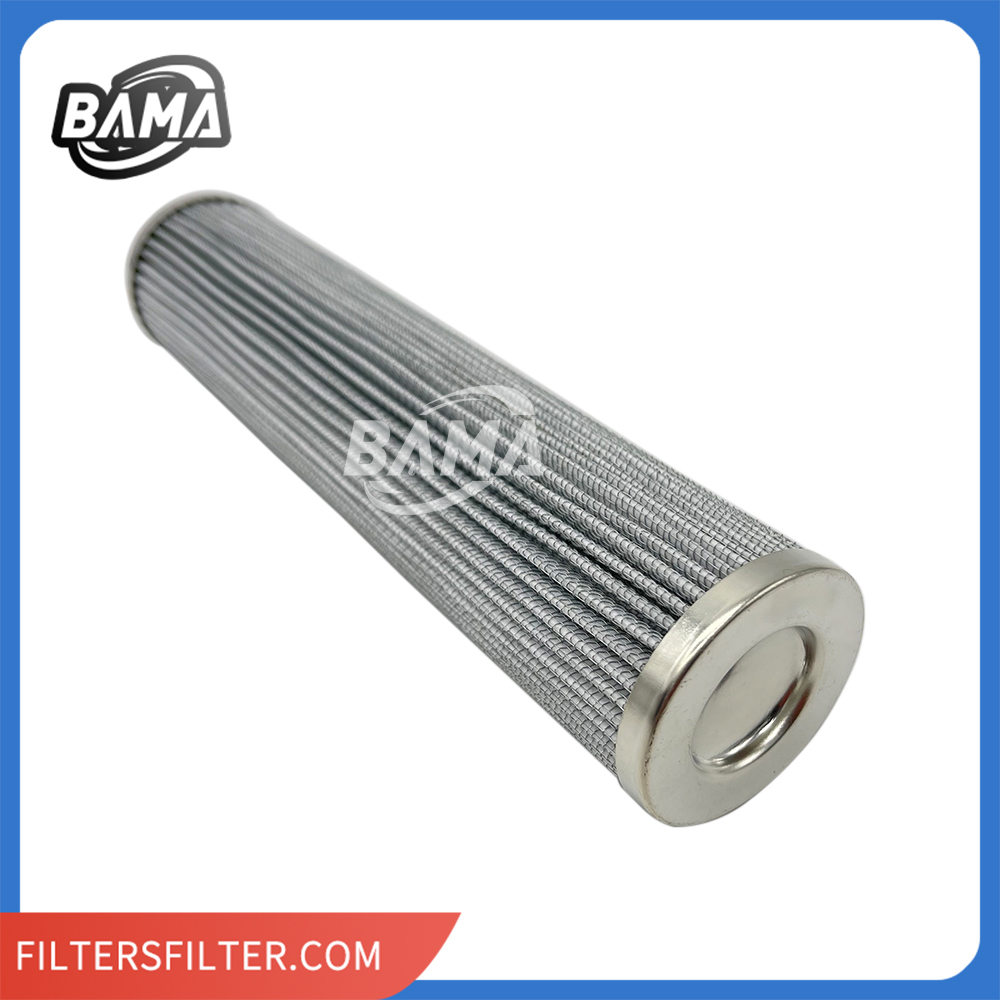

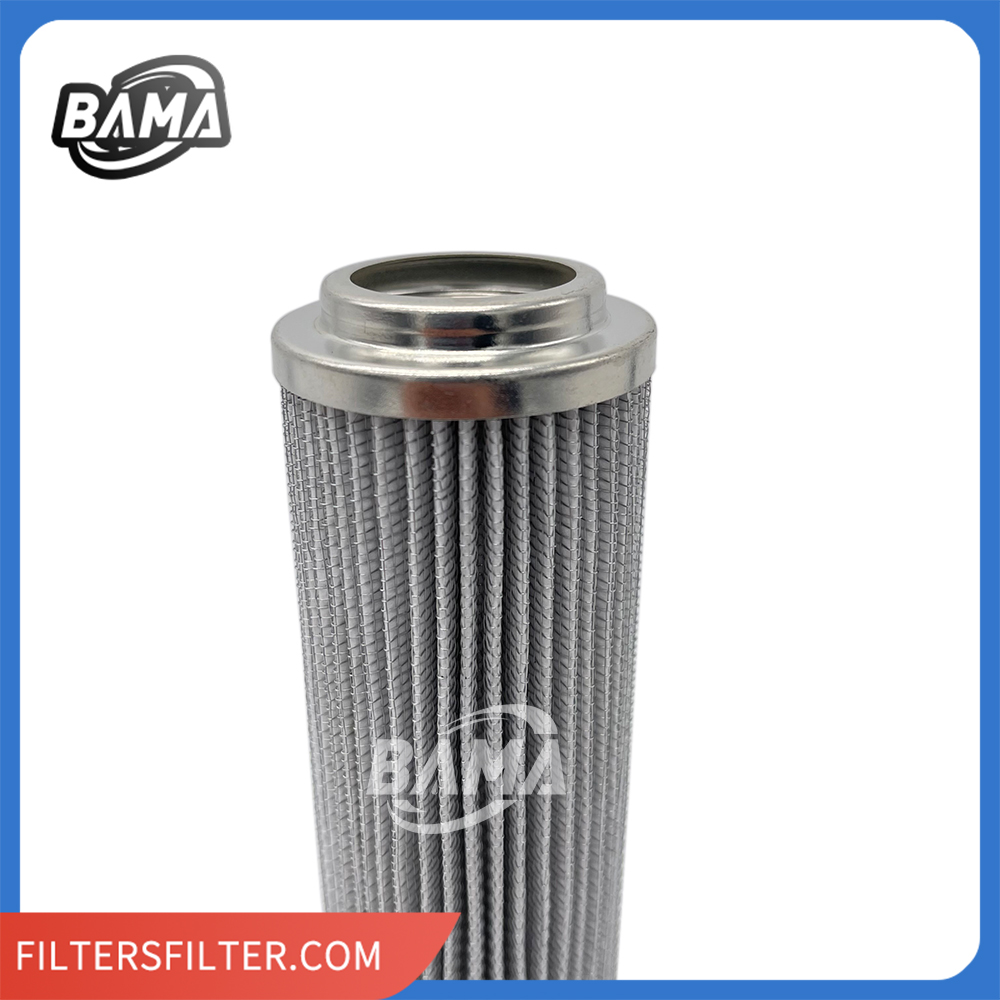

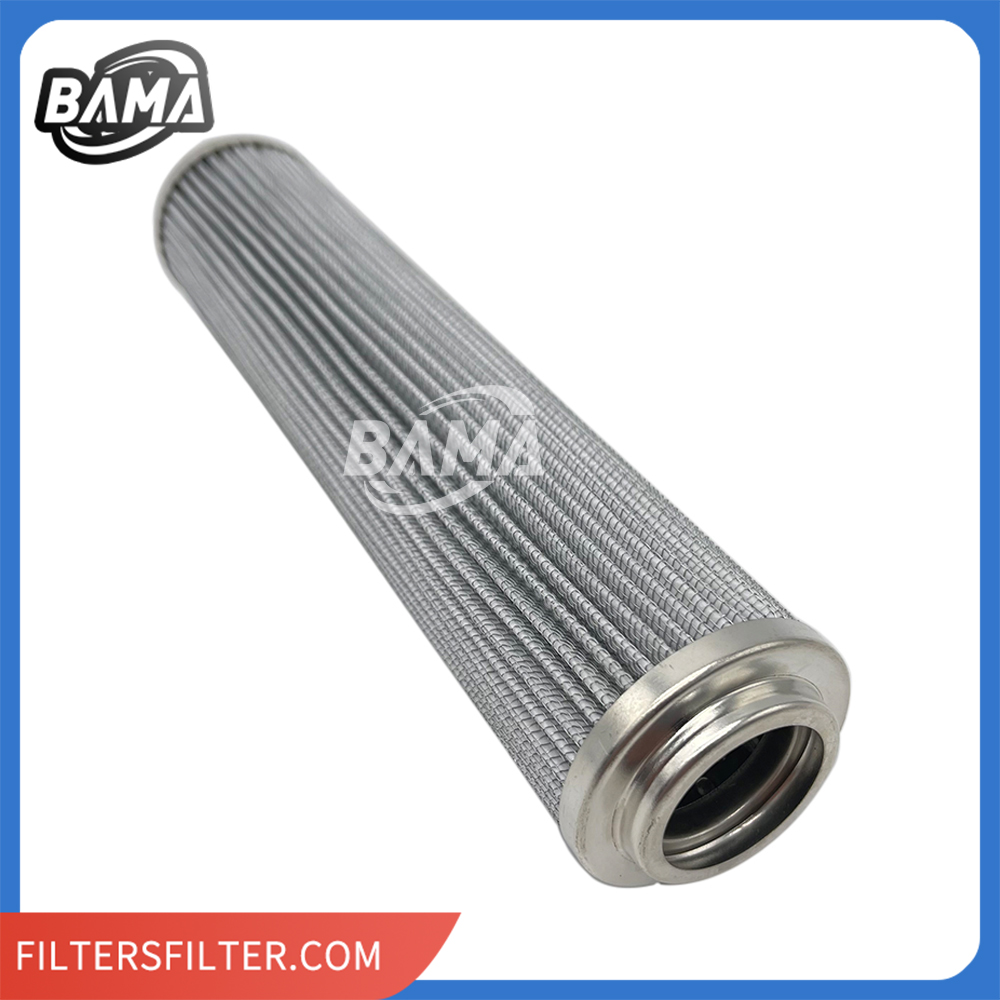

MOOG 07160300 Hydraulic Pressure Filter

Product Attributes：

Model No ：	07160300		Brand ：	BAMA
Packaging :	Carton Box		Productivity :	3000pcs/month
Transportation :	Ocean,Land,Air		Place of Origin :	Hebei, China
Certificate ：	ISO9001:2015		HS Code ：	8421999090
Selling Units:	Piece/Pieces		Filtration Efficiency :	99%

TECHNICAL INFO：

	Weight[kg]:	0.3
	Area of application:	hydraulics
	Filter medium:	glass fiber
	Filter fineness [um(c)]:	B4.5=1000
	Gaskets - Material:	NBR
	max. permissible differential pressure [bar]:	210
	Permitted Continuous use temperature:	-25°C to +120°C

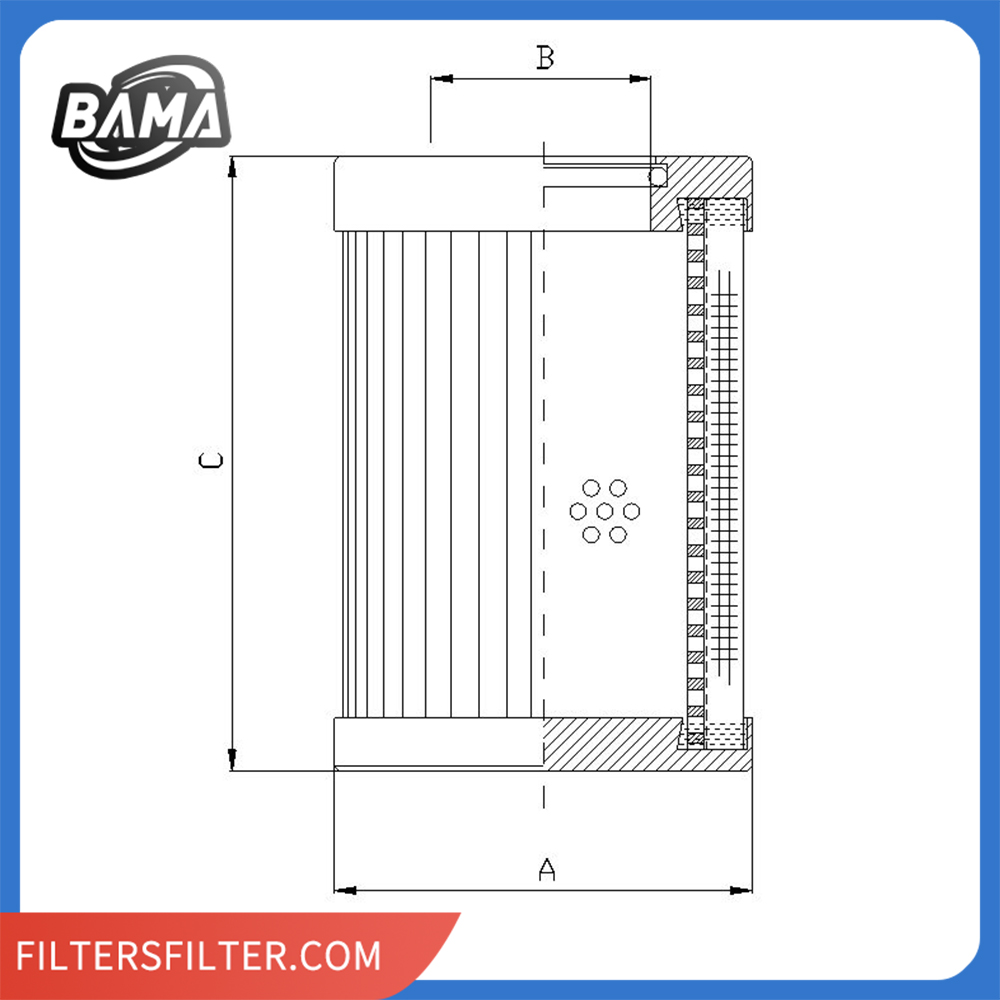

	A	45
	B	25.4
	C	114

Please check below OEM Cross Reference (if any).

OEM Cross Reference:

MOOG	07160300
MOOG	07160300A
MOOG	B645641
MOOG	B645641V
NAPA	7853
NELSON WINSLOW	87835N
NELSON WINSLOW	87836N
OMT	CHP282F03YN
OMT	CHP282FYN
PTI	FK010GUB
PTI	FK010GUV
PUROLATOR	1400EAH034F1
PUROLATOR	1400EAH034N1
PUROLATOR	9314349
QUALITY FILTRATION	QH9021A03B04
QUALITY FILTRATION	QH9021A03V04
SCHROEDER	SBF90214S1B
SCHROEDER	SBF90214S1V
SCHROEDER	SBF90214Z3B
SCHROEDER	SBF90214Z3V
SEPARATION TECHNOLOGIES	8902H02B04
SEPARATION TECHNOLOGIES	8902H02V04
SEPARATION TECHNOLOGIES	3902SGCB04
SEPARATION TECHNOLOGIES	3902SGCV04
SEPARATION TECHNOLOGIES	8902H02B4
SERVOLIFE	H300304
SF-FILTER	HY20550
SF-FILTER	HY18298
SIEMENS	1CS166767
SOFIMA HYDRAULICS	CH152FT21
SOFIMA HYDRAULICS	CH152FT22
SOFIMA HYDRAULICS	CCH1522T1
SOFIMA HYDRAULICS	SGO1429FT21
SOFRANCE	CH0254103351N00
SOFRANCE	CH8479101481Y00
SPIFIL	SP2712
STAUFF	SP010F03B
SWIFT	SF902143UMV
TEREX	H396081134
TRIBOGUARD	902142UM
TRIBOGUARD	902142UMV
UCC HYDRAULICS	JR631114
UFI	EPB12NHA
UFI	14570402V
VARCO DRILLING	30111013KIT
VARCO DRILLING	30173216KIT
VELCON	I65685TB
VICKERS	V3045B1H03
VICKERS	V3045V1H03
VICKERS	V3045B1V03
VICKERS	V3045V1V03
VMC	HF167180
VOKES	D6360523
VOKES	D6360529
WESTERN	E3042BU03
WESTERN	E3042VU03
WIX	57853
WOODGATE	WGPP92104Z
ZINGA	G0403HN
ZINGA	G0403H

Application

Mainly used for steel mill , power plant ,mine/resource depot , paper mill, and paper making enterprise power hydraulic station system filtration, widely used in petroleum, metallurgy, chemical industry, railway, oil field, oil exploitation,pharmaceutical factory aviation, electronics, power, pharmaceutical, environmental protection, atomic energy, nuclear industry, natural gas, refractory materials, fire fighting equipment, etc. field. In hydraulic systems steam turbine systems, natural gas systems and lubrication station systems, etc



Glass Fiber Oil Filter Has The Features As Follow

● Resistance to high temperature, high pressure.

● High strength, high filter rating, good dirt holding capacity, repeated washing

● Filter layers, ripple neat

● Easy to install

● Strong inner skeleton

● Segregated Depth Filtration

● High Dirt Holding Capacity

● Reduce bearing wear

● extend the use of oil life.
